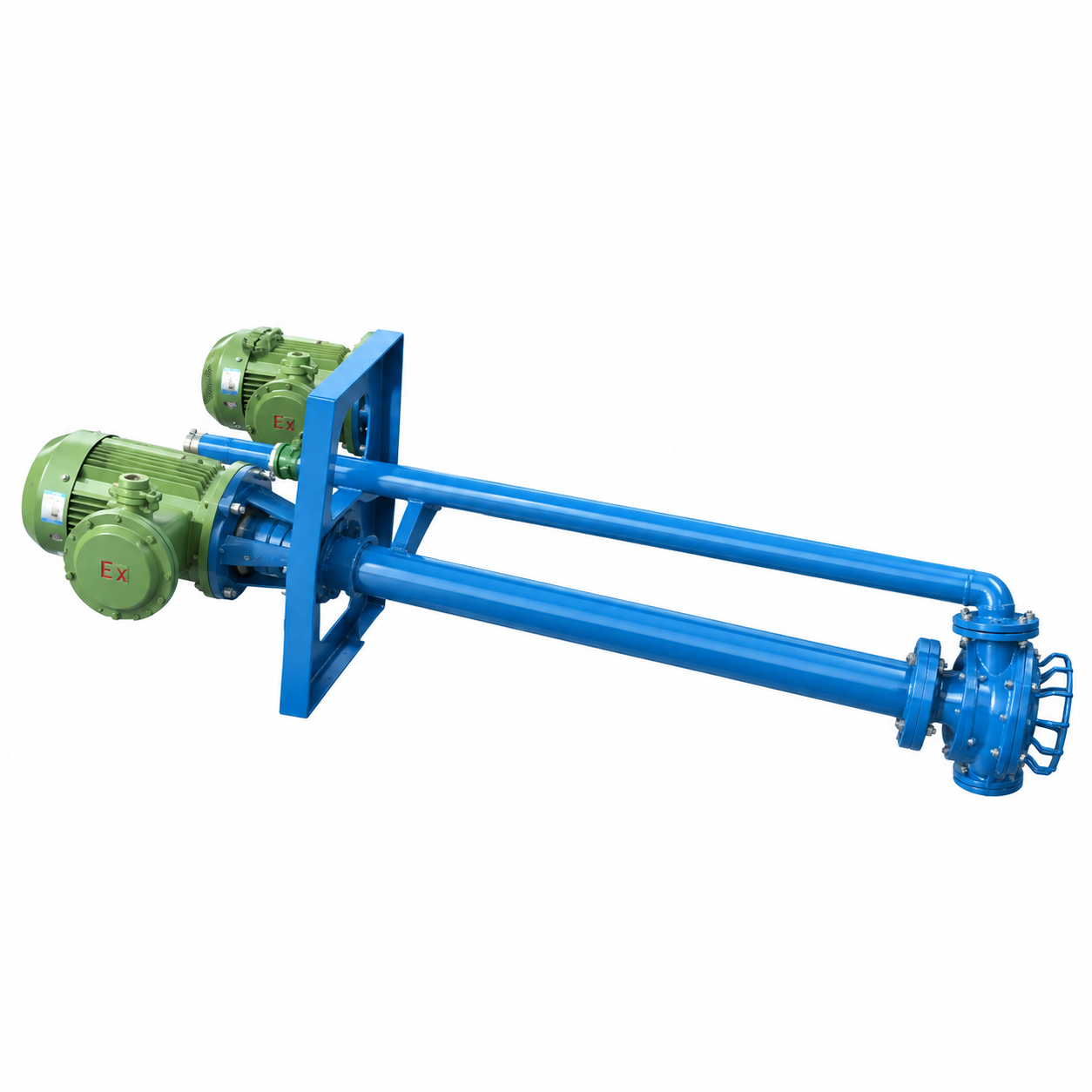

TLW-60 Centrifuge Feed Pump: High-Efficiency Vertical Submerged Solution

In the solids control system of drilling operations, the efficient transfer of drilling fluids to the decanter centrifuge is critical. The TLW-60 Centrifuge Feed Pump is a state-of-the-art vertical submerged centrifugal pump specifically engineered to provide a continuous and stable feed for centrifuges.

Designed with durability and efficiency in mind, the TLW-60 ensures optimal performance even in the most demanding mud tank environments.

Key Features and Advantages

• Specialized Design: Purpose-built as a vertical submerged pump, it perfectly matches the requirements of centrifuge feeding operations.

• Advanced Sealing Technology: Utilizes a combination of mechanical seal and oil seal. This dual-seal design guarantees excellent sealing performance, preventing leaks and significantly extending the pump's service life.

• High Efficiency: With an efficiency rating of 65% and a powerful 5.5/7.5 kW motor, it delivers reliable and energy-efficient fluid transfer.

• Customizable Immersion Depth: The depth to which the pump extends into the mud tank can be fully customized according to the specific depth of the client's mud tank.

Main Technical Parameters

Below are the detailed specifications for the TLW-60 Centrifuge Feed Pump to help you integrate it seamlessly into your drilling fluid processing system.

(Note: The depth of going deep into the mud tank can be designed as per the depth of the tank that the clients use.)

Frequently Asked Questions (FAQ)

Q1: What is the TLW-60 Centrifuge Feed Pump used for?
A: The TLW-60 is a vertical submerged centrifugal pump specially designed to supply drilling fluid (mud) directly to a decanter centrifuge in a solids control system.

Q2: How does the TLW-60 prevent fluid leakage?
A: It adopts a highly reliable combined sealing system consisting of both a mechanical seal and an oil seal. This ensures a tight seal, good performance, and a long operational lifespan.

Q3: Can the length of the pump be customized?
A: Yes. The depth to which the pump goes deep into the mud tank can be customized based on the specific dimensions and depth of the client's mud tank.

Q4: What are the inlet and outlet sizes of this pump?
A: The TLW-60 features a 3-inch inlet diameter and a 2-inch outlet diameter, with a discharge capacity of 60 m³/h.
