Name: API Spec 8A/8C Wash Pipe Assembly for Drilling Rig Swivels with SL135 SL225 SL450 Models
Brand: Topland Oilfield Supplies Ltd.
SKU: SL450
Price: 25,050.00 USD
Availability: InStock

Detail Information

Highlight:

Top Drive Replacement Parts Wash Pipe

Drilling Rig Top Drive Replacement Parts

Product Description

Top Drive Replacement Parts Wash Pipe Drilling Rig Spare Parts Oilfield Supplies Rig Swivels

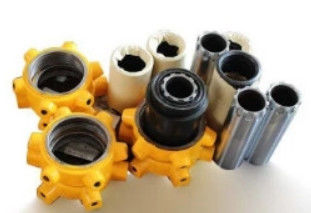

Oilfield Drilling Rig Swivels Wash Pipe Packing Assembly. Swivels Type SL are critical rotary joints for transmitting torque and circulating drilling fluid in well drilling and repairing. They feature wash pipe packing assemblies to ensure dynamic sealing during rotation.

Models include SL35, SL60, SL90, SL135, SL225, and SL450, classified by rated static load. Designed and manufactured to API Spec 8A/8C, these swivels enable reliable rotation and fluid circulation while connecting drill strings and hoses, playing a key role in maintaining wellbore operations.

Technical Specifications

Model	SL135	SL225	SL450
Max.static load KN(Ibs)	1350	2250	4500
Max.Rotary Speed(r/min)	300	300	300
Max.working pressure(Mpa)	35	35	35
Hook Clearance (mm)	495	540	549
Center Pipe Diameter(mm)	64	75	75
Bore of stem mm(in)	752 15/16	752 15/16	752 15/16
Connection Screw Thread	Connect to Center Pipe API	REG 4 1/2,LH	REG 6 5/8,LH
Connnect to Kelly API	REG 6 5/8,LH	REG 6 5/8,LH	REG 6 5/8,LH
Model of air motor	FMS-20	FMS-20	FMS-20
Rated speed r/min	2800	2800	2800
Power KW	14.7	14.7	14.7
Rated pressure MPa	0.6	0.6	0.6
Air consume volume m³/min	17free air	17free air	17free air
Rated spinning speed r/min	92	92	92
Max.spinning torque N*m	3000	3000	3000
Overall dimension mm(in)	Length: 2505 Width: 758 Height: 840	Length: 2880 Width: 1046 Height: 1065	Length: 3015 Width: 1096 Height: 1065
Masskg(KG)	1341	2570	3060

Frequently Asked Questions

Who are we?

Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries, such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

How can we guarantee quality?

Always a double requirements and drawing checking before the production
Always final Inspection before shipment

What can you buy from us?

Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake, Solids Control Equipment, Drilling and Fishing Tools, Wellhead Control Equipment, Drilling Accessories, Cementing Equipment and Tools etc.

Why should you choose us?

Professional & Efficient, Customer Focus, Win-win Cooperation
Fast Quote, Competitive price & within shortest lead time
Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment
Order tracking service

How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

What is your terms of payment?

Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.

Contact Information

For additional information or inquiries:
Email: anna.cai@toplandoil.com
WhatsApp: +86 17391602750

Tag:

Place of Origin:	China
Brand Name:	Topland
Certification:	API
Model Number:	SL450

Minimum Order Quantity:	2
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5days
Payment Terms:	T/T,Western Union
Supply Ability:	70 per day
