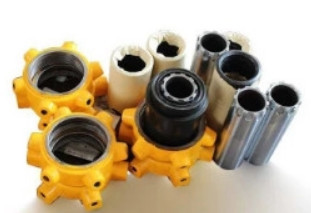

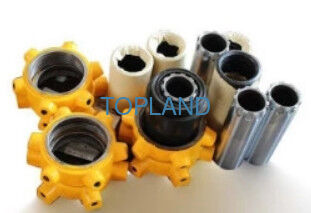

Name: API Spec 8A/8C Varco Top Drive Swivels Wash Pipe Packing Assembly with Dynamic Sealing for SL135, SL225, SL450 Models
Brand: Topland Oilfield Supplies Ltd.
SKU: SL225
Price: 25,050.00 USD
Availability: InStock

API Spec 8A/8C Varco Top Drive Swivels Wash Pipe Packing Assembly with Dynamic Sealing for SL135, SL225, SL450 Models

Basic Information

Place of Origin:	China
Brand Name:	Topland
Certification:	API
Model Number:	SL225

Minimum Order Quantity:	2
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5days
Payment Terms:	T/T,Western Union
Supply Ability:	70 per day

Get Best Price Contact Now

Detail Information

Highlight:

API Spec 8A/8C Swivels Wash Pipe Packing Assembly

Dynamic Sealing Varco Top Drive Parts

SL135

SL225

SL450 Models Oilfield Drilling Rig Swivels

Product Description

Oilfield Drilling Rig Swivels Wash Pipe Packing Assembly. Swivels Type SL are critical rotary joints for transmitting torque and circulating drilling fluid in well drilling and repairing. They feature wash pipe packing assemblies to ensure dynamic sealing during rotation.

Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35, SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.

Model			SL135	SL225	SL450
Max. static load kN(lbs)			1350	2250	4500
Max. Rotary speed (r/min)			300	300	300
Max. working pressure(Mpa)			35	35	35
Hook Clearance (mm)			495	540	549
Center Pipe Diameter (mm)			64	75	75
bore of stem mm(in)			752 15/16	752 15/16	752 15/16
Connection Screw Thread	Connect to Center Pipe API		REG 4 1/2,LH	REG 6 5/8,LH	REG 7 5/8,LH
Connection Screw Thread	Connect to Kelly API		REG 6 5/8,LH	REG 6 5/8,LH	REG 6 5/8,LH
Model of air motor			FMS-20	FMS-20	FMS-20
Rated speed r/min			2800	2800	2800
Power kW			14.7	14.7	14.7
Rated pressure MPa			0.6	0.6	0.6
Air consume volume m3/min			17free air	17free air	17free air
Rated spinning speed r/min			92	92	92
Max. spinning torque N·m			3000	3000	3000
Overall dimension mm(in)		Length	2505	2880	3015
		Width	758	1046	1096
		Height	840	1065	1065
Masskg(kg)			1341	2570	3060
