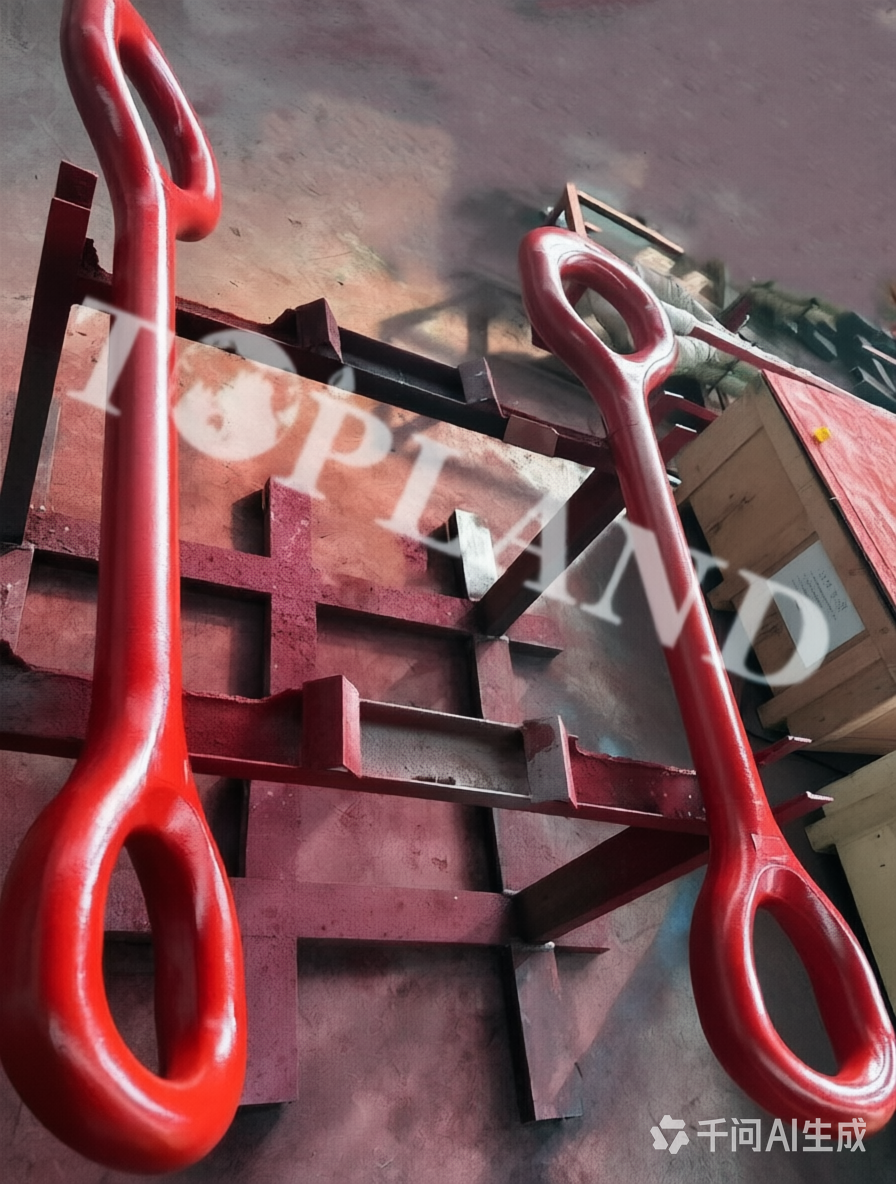

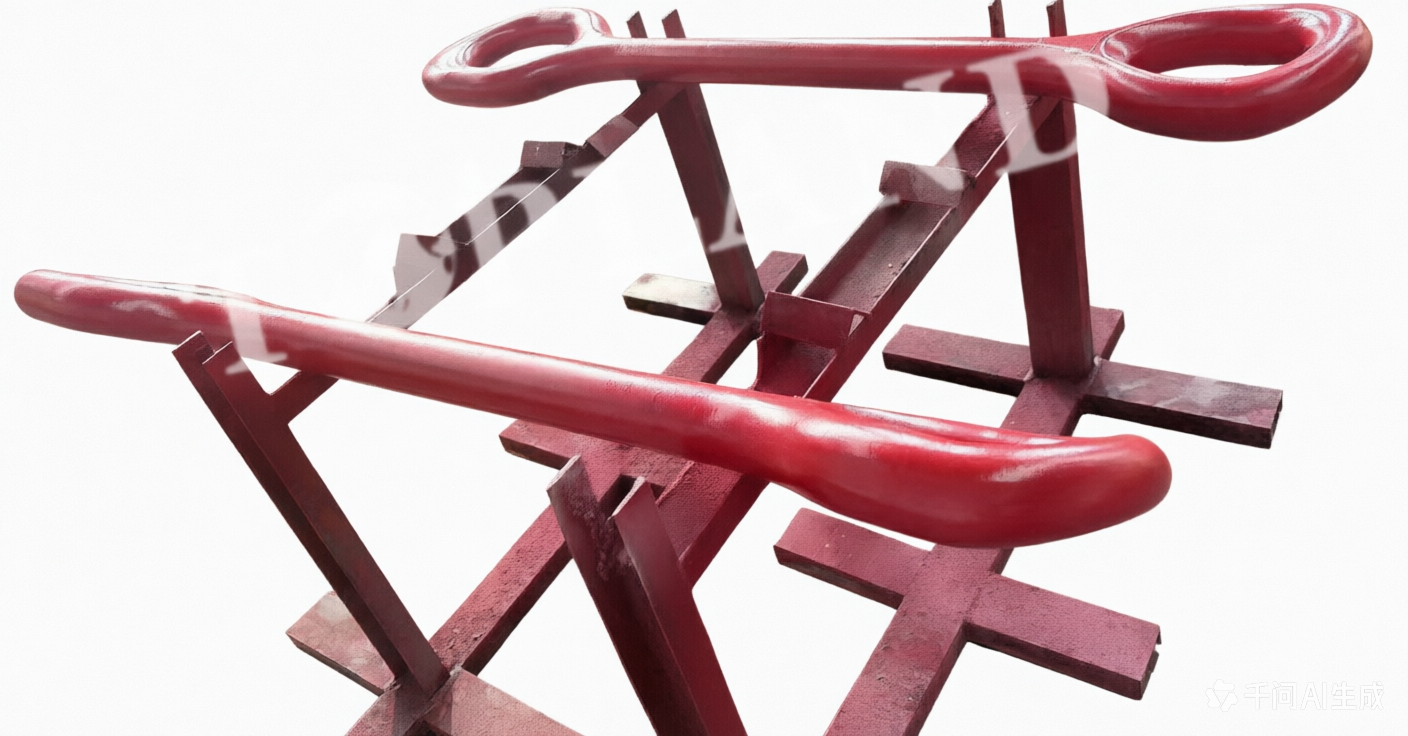

DH250T 2-1/4″×60″ 250 Ton Elevator Links

Product Overview

The DH250T Elevator Links are heavy-duty lifting components designed for land and offshore drilling operations. Rated at 250 tons with dimensions of 2-1/4″ × 60″, these links are compatible with most rig hoisting systems including top drives, hooks, and elevators. Manufactured by an API 8C certified facility, each link is forged from high-strength alloy steel, heat-treated, and 100% NDT-inspected to ensure maximum safety under extreme loads. Available from stock for fast worldwide delivery.

Key Features

• 250‑Ton Rated Load – Engineered for deep well and high‑pressure oilfield hoisting, with an API 8C safety factor ≥3:1.

• Precision Dimensions – 2-1/4″ diameter × 60″ length, standard interface fits most rig hoisting systems.

• Premium Material – Forged from high‑strength alloy steel (e.g. AISI 4145H), quenched and tempered for optimal toughness and fatigue resistance.

• 100% Non‑Destructive Testing – Each piece undergoes magnetic particle (MT) and ultrasonic (UT) inspection; traceable reports provided.

• API 8C Compliant – Manufacturer holds API Spec 8C certificate; full traceability from raw material to final product.

• In Stock Now – Ready to ship within 24 hours for emergency projects; no minimum order quantity.

  Technical Specifications Table







  Parameter	Specification
  Model	DH250T-60
  Working Load Limit (WLL)	250 short tons (approx. 224 metric tons)
  Dimensions	2-1/4″ diameter (57.15 mm) × 60″ length (1524 mm)
  Material	High‑strength alloy steel, open‑die forged (e.g. 4145H or equivalent)
  Heat Treatment	Quenched + tempered, uniform hardness with excellent core toughness
  NDT Methods	100% MT + UT, in accordance with API 8C appendix
  Certification	API Spec 8C / ISO 13535, with traceable MTR and certificate copy
  Surface Finish	Rust preventive primer (standard); zinc plating / black oxide on request
  Stock Status	✅ In stock – ready for immediate shipment, bulk quantities available
  Typical Applications	Land rigs, offshore platforms, workover rigs, heavy hoisting systems

  Why Choose DH250T Elevator Links?

  1. Superior Safety Margin – Designed and validated to API 8C, with a minimum breaking load ≥3 × WLL.

  2. Full Traceability – Each link is marked with a unique serial number traceable to heat lot, heat treatment chart, and NDT records.

  3. Field Proven – Extensively used in Middle East, North America, and shale gas projects with zero failure reports over 2000+ operating hours.

  4. Technical Support – Free dimensional verification, installation guidance, and load calculation services to ensure perfect fit with your existing elevators and hooks.

  Frequently Asked Questions (FAQ)

  1. Are DH250T Elevator Links truly API 8C certified?
  Yes. Our manufacturing facility holds a valid API Spec 8C license (certificate number available upon request). Every batch is produced and inspected according to API 8C requirements, and we provide full certification documents with each shipment.

  2. Is the 250‑ton rating the working load limit or the breaking load?
  The 250‑ton rating is the Working Load Limit (WLL). Per API 8C, the design safety factor is at least 3:1, meaning the minimum breaking load exceeds 750 tons, ensuring absolute safety within the rated capacity.

  3. Do you have stock? What is the minimum order quantity?
  Yes, DH250T 2-1/4″×60″ is in stock now. No minimum order quantity – we sell single pieces as well as bulk orders. Emergency shipments can be arranged within 24 hours after payment confirmation.

  4. What material and corrosion protection are used?
  The links are forged from high‑strength alloy steel (4145H or equivalent). Standard surface finish is rust preventive primer. For offshore or corrosive environments, we offer optional zinc plating, black oxide, or Teflon coating.

  5. Can you provide custom sizes or higher ratings?
  Absolutely. As an API 8C approved manufacturer, we accept custom orders including different lengths (up to 120″), larger tonnages (350T / 500T), and special materials. Please contact our engineering team with your requirements.

  6. What is the lead time for custom orders?
  Standard in‑stock items ship within 48 hours. Custom orders typically take 4–6 weeks depending on specifications. Third‑party inspection (DNV, BV, ABS) is available upon request.
