Name: API Specifications Top Drive Saver Sub and Kelly Saver Sub Made from High-Quality Steel with 12 Months Warranty
Brand: Topland Oilfield Supplies Ltd.
SKU: Saver Sub
Price: 25,050.00 USD
Availability: InStock

API Specifications Top Drive Saver Sub and Kelly Saver Sub Made from High-Quality Steel with 12 Months Warranty

Basic Information

Place of Origin:	China
Brand Name:	Topland
Certification:	API
Model Number:	Saver Sub

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Wooden Box
Delivery Time:	5-8 working days
Payment Terms:	L/C,D/A,Western Union
Supply Ability:	30 per day

Get Best Price Contact Now

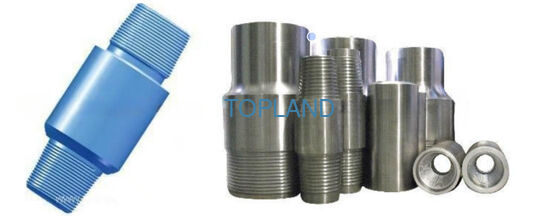

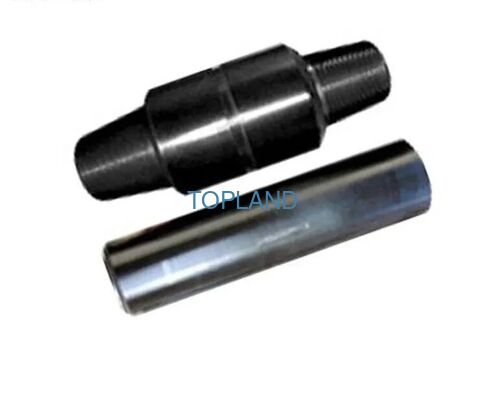

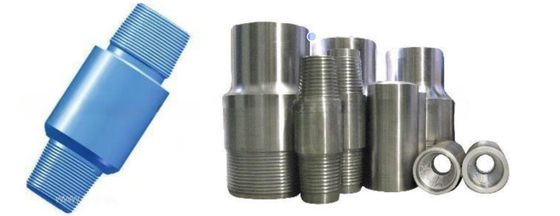

Top Drive Saver Sub / Kelly Saver Sub for Drilling Rig Spare Parts

Product Description

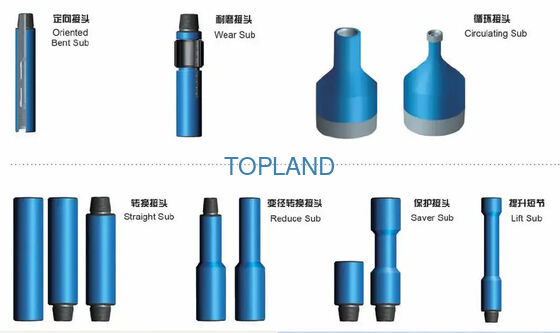

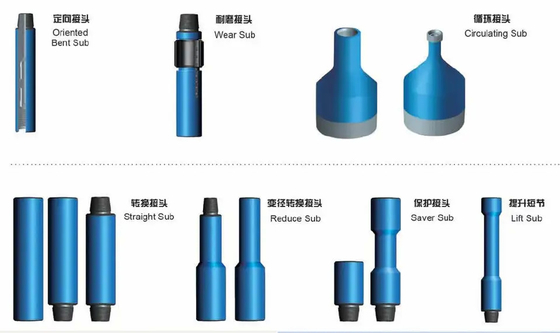

The Top Drive Saver Sub is a type of sub that connects the Lower IBOP and the drill pipe, and is mainly used in top drive systems. It functions not only as a crossover sub but also provides protection for the lower IBOP. The top drive saver sub can be classified into a standard top drive saver sub and a low-temperature top drive saver sub.

The top drive sub can be easily replaced or repaired when the lower pin threads become galling or are damaged. These tools are manufactured using selected high-quality steel bars. All of our drill stem subs are produced in compliance with API specifications.

Condition:	New	Warranty:	12 Months
Applicable Industries:	Machinery Repair Shops, Retail, Energy & Mining	Weight (KG):	100
Core Components:	Engine

Product Parameter

Item	O.D.	I.D.	OAL	Connection
Item	(mm/inch)	(mm/inch)	(mm/inch)	API
1	187(7-23/64)	44.5(1-3/4)	432(17)	6 5/8REG PIN×NC31 PIN
2	187(7-23/64)	44.5(1-3/4)	432(17)	6 5/8REG PIN LH×NC31 PIN LH
3	187(7-23/64)	57.2(2-1/4)	445(17-1/2)	6 5/8REG PIN×NC38 PIN
4	187(7-23/64)	57.2(2-1/4)	445(17-1/2)	6 5/8REG PIN LH×NC38 PIN LH
5	187(7-23/64)	71.4(2-13/16)	458(18)	6 5/8REG PIN×NC50 PIN
6	197(7-3/4)	57.2(2-1/4)	458(18)	6 5/8REG PIN×NC38 PIN
7	197(7-3/4)	71.4(2-13/16)	470(18-1/2)	6 5/8REG PIN×NC50 PIN
8	197(7-3/4)	71.4(2-13/16)	458(18)	6 5/8REG PIN LH×6 5/8REG PIN LH
Please specify the size if you have any special demand.
