| Condition: |
New |
Warranty: |
12 Months |
| Application: |
Well Drilling |
Keyword:: |
NOV Top Drive Spare Parts |
| Processing Type:: |
Forging |
| High Light: |
PH-100 IBOP Valve
,
TDS-8S Top Drive Spare Parts
,
Upper IBOP Valve
|

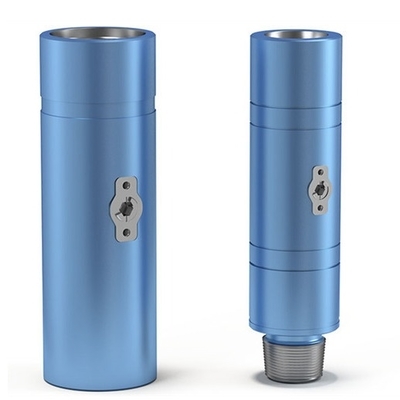

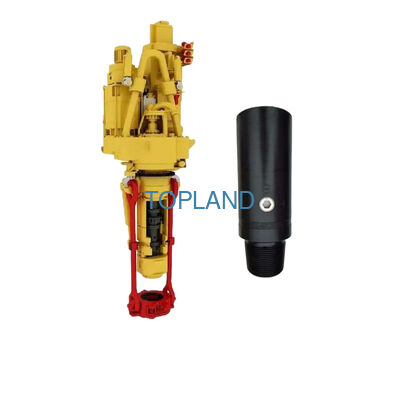

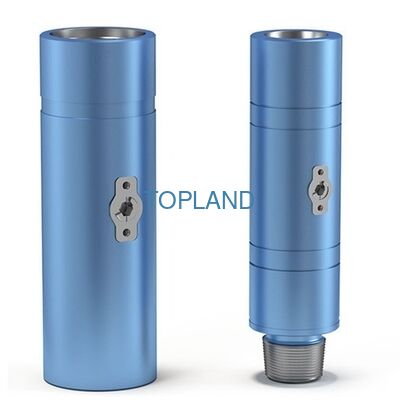

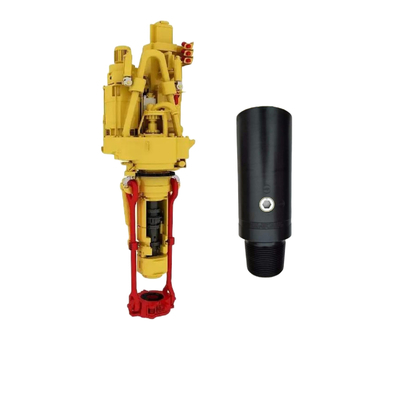

TDS-8S Top Drive Spare Parts Lower/Upper IBOP Valve NOV IBOP PH-100
IBOP for top drive drilling systems can be classified into Upper IBOP and Lower IBOP. They function as control valves used in conjunction with the top drive system and are typically installed as a pair connected to the top drive drilling equipment. The IBOP uses a highly reliable metal sealing structure, allowing it to withstand both high upward and downward pressures. Its working pressure can reach 10,000 psi or 15,000 psi.
The valve body bore and all internal components are specially treated to enhance corrosion resistance, ensuring long service life. In the event of a well kick, the Upper IBOP can be closed via remote control, while the Lower IBOP is closed manually. The actuator for the top drive is an auxiliary device responsible for controlling the opening and closing of the Upper IBOP. It operates in coordination with other rig accessories to enable remote operation of the Upper IBOP.
| 67331-SBER |
30173887-500 |
MODEL 30173887-500 UPPER IBOP VALVE, UPPER, IBOP, 15K,COMPLETE ASSY FOR TDS-8S TOP DRIVE SYSTEM AND PH-100
PIPE HANDLER.VARCO UPPER I-BOP VALVE P/N. 30173887-500, 5.¼" X 15,000 PSI WP WITH 9.06" OD X 3.1/16" ID WITH 3.82" BORE X 29½" LONG COMPLETE WITH 7.5/8" API REG BOX X BOX CONNECTIONS, SPLINED DUAL CRANK WITH SHOULDER AND REMOTE CONTROL AIR ACTUATOR FOR OPERATIONS |
| 67331-SBER |
91138 |
MODEL 91138 LOWER IBOP VALVE, LOWER, IBOP, 15K, COMPLETE ASSY FOR TDS-8S TOP DRIVE SYSTEM AND PH-100 PIPE
HANDLER. VARCO LOWER I-BOP VALVE P/N. 91138, 5.¼" X 15,000 PSI WP WITH 8.5/8" OD X 3.1/16" ID WITH 3.82" BORE COMPLETE WITH 7.5/8" API REG R.H. BOX X PIN CONNECTIONS |
Drilling Rig Spare Parts IBOP Technical Parameter:
| OD |
ID |
OAL |
Connection |
| mm (inch) |
mm (inch) |
mm (inch) |
| 187 (7-23/64) |
78 (3-5/64) |
572 (22-33/64) |
6-5/8 REG |
| 187 (7-23/64) |
78 (3-5/64) |
523 (20-19/32) |
6-5/8 REG |
| 187 (7-23/64) |
76.2 (3) |
572 (22-33/64) |
6-5/8 REG |
| 187 (7-23/64) |
76.2 (3) |
523 (20-19/32) |
6-5/8 REG |
| 187 (7-23/64) |
78 (3-5/64) |
523 (20-19/32) |
6-5/8 REG |
| 187 (7-23/64) |
78 (3-5/64) |
572 (22-33/64) |
6-5/8 REG |
| 190 (7-31/64) |
76.2 (3) |
547 (21-17/32) |
6-5/8 REG |
| 197 (7-3/4) |
76.2 (3) |
572 (22-33/64) |
6-5/8 REG |
| 197 (7-3/4) |
76.2 (3) |
536 (21-7/64) |
6-5/8 REG |
| 197 (7-3/4) |
78 (3-5/64) |
584 (23) |
6-5/8 REG |
| 197 (7-3/4) |
78 (3-5/64) |
512 (20-5/32) |
6-5/8 REG |
| 200 (7-7/8) |
76.2 (3) |
547 (21-17/32) |
6-5/8 REG |
| 216 (8-1/2) |
78 (3-5/64) |
600 (23-5/8) |
7-5/8 REG |
| 216 (8-1/2) |
78 (3-5/64) |
533 (20-63/64) |
7-5/8 REG |
| 216 (8-1/2) |
76.2 (3) |
603 (23-47/64) |
7-5/8 REG |
| 254 (10) |
105 (4-1/8) |
596 (23-15/32) |
8-5/8 REG |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
