| Product Name: |
Casing Running Tool |
Material: |
Carbon Steel |
| Weight: |
3495 Kg |
Processing Type: |
Casting |
| Seal Pressure: |
35 |
Casing Size: |
4-1/2 - 5-1/2 |
| Application: |
Top Drive |
Condition: |
New |

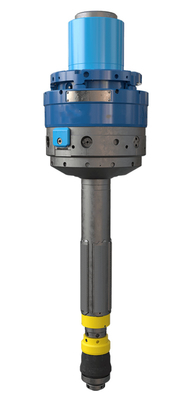

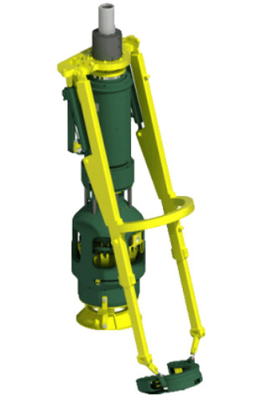

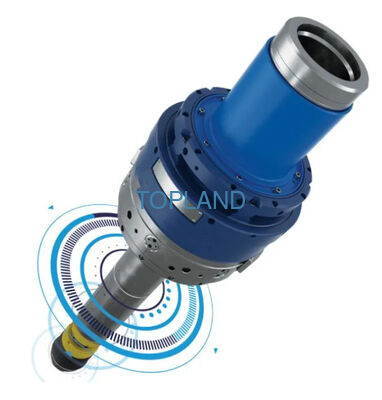

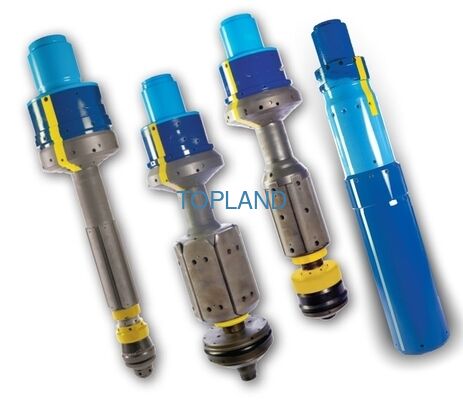

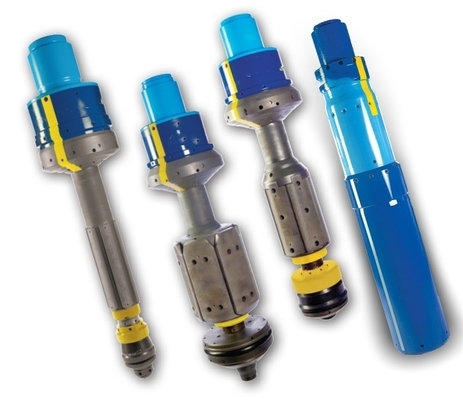

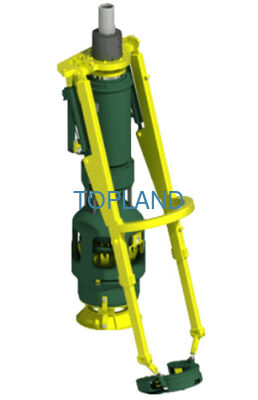

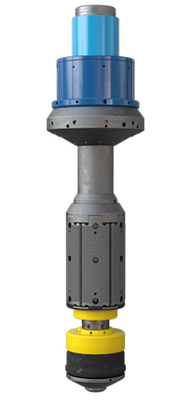

CRT 350 Casing Running Tool for Mechanical Top Drive
Oilfield Wellhead Equipment Description
The CRT 350 Casing Running Tool is designed to significantly improve casing running operations on land drilling rigs and compact offshore drilling units. Integrating the capabilities of proven equipment such as the Top Drive System, Flush Mounted Spider (FMS), Fill-Up and Circulation Tool, and Single Joint Elevator (SJE), the CRT 350 enhances operational safety while increasing running efficiency and reducing overall handling time.
Mounted directly to the Top Drive main shaft, the CRT enables casing lifting, lowering, spinning, and connection make-up through a single integrated system. In addition, it allows casing strings to be rotated and reciprocated while simultaneously providing fill-up and circulation functions with pressure ratings up to 5,000 psi.
The combination of these features helps streamline casing operations, improve wellsite efficiency, and support safer drilling practices.
| Model |
CRT140 / 350 |
| ID |
mm(inch) |
25.4(1) |
| Casing Size |
inch |
4-1/2~5-1/2 |
| Sleeve size |
inch |
4-1/2--9-5/8 |
| Seal Pressure |
MPa(PSI) |
35(5,000) |
| Max.Tensile Load |
KN(Ibf) |
3500(780,000) |
| Max. Working Torque |
KN-m(lbfft) |
26(19,200) |
| OAL |
mm (ft) |
2080 (6.8) |
| Boost speed |
T(MT) |
350 (317) |
| Grouting and Circulation System |
4-2/2", 9-5/8" Circulation and Grouting
(grouting, circulation and restoration of all processes) |
| Max. mud circulation pressure |
PSI(KPA) |
5000 (34500) |
| Rotational speed |
rpm |
0-20 |
| Weight |
lbs (kg) |
7700 (3493) |
| Down pressure |
lbs (kg) |
20000 (9072) |
| Temperature range |
℃ |
-20~40 |
| Connection |
|
6-5/8 REG |
