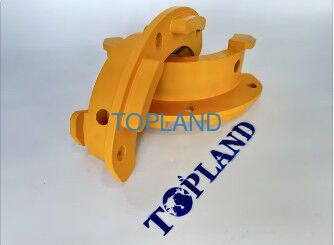

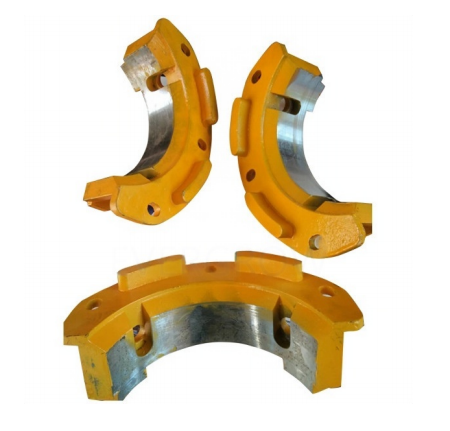

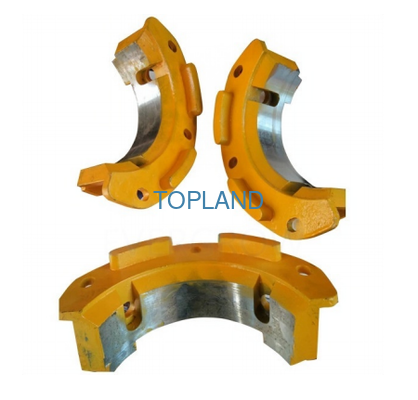

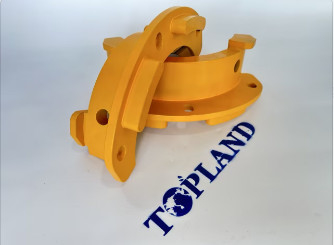

TDS Top Drive Spare Parts Liner Stabilizer High-Grade Materials OEM Specifications for Varco TDS-11SA 30158690

Basic Information
Place of Origin: China
Brand Name: Varco
Certification: ISO
Model Number: TDS-11SA
Minimum Order Quantity: 1 PIECE
Price: negotiable
Packaging Details: wooden box
Delivery Time: 3-5 days
Payment Terms: L/C,D/P,D/A
Supply Ability: 100 Piece/Pieces per Month
Detail Information
Highlight:

Liner Stabilizer TDS Top Drive Spare Parts

,

High-Grade Materials Varco TDS-11SA 30158690

,

OEM Specifications Drilling Rig Components


Product Description

TDS Top Drive Spare Parts

Top Drive System (TDS) spare parts are essential for maintaining the performance and reliability of drilling operations in the oil and gas industry. Designed for use in Top Drive Systems, these components help ensure efficient operation, reduced downtime, and extended equipment service life.


Produced using high-grade materials and strict quality control standards, our spare parts are built to perform under challenging drilling conditions. Available products include bearings, seals, gears, motors, electronic control components, and other critical Top Drive assemblies.


As high-quality interchangeable replacement parts, they are designed to meet OEM specifications and provide a dependable, cost-effective alternative for equipment maintenance and replacement needs.


Related Parts For TDS

Description Part No.
RING,HEAD,CYLINDER 11085
SEAL,PISTON 72219
SEAL ROD 72220
WIPER, ROD 72221
LINER, STABILIZER 30158690
BUSHING,SLEEVE,1.00x0.50,FIBERGLIDE 118844-16-08
BUSHING,SLEEVE,1.00x0.75,FIBERGLIDE 118844-16-12
BUSHING.SLEEVE,1.38x1.38,FIBERGLIDE 118844-22-22
CAM FOLLOWER 71847
O-RING 51300-273-B
O-RING 51300-381-B
RING,GLYD,11.0DIA-ROD 30119319
RING,GLYD,11.5 DIA-ROD(S48130-340A-29) 30119143
RING,GLYD,10.0 DIA-ROD 118375
RING,THRUST,.125x7.75x10.0 30119357
PISTON RING 30173156
SEAL,LIP 8.25x9.5x.62 77039
SEAL,WIPER,11.0DIA-ROD 119547
RING,RETAINER,EXTERNAL 30117775-2
BUSHING,SLEEVE,SPLIT,1.25X10.0DIA 119358
BUSHING,SLEEVE,1.0X1.25 115176
BEARING,SINTERED,BRONZE,FLANGED 112754-130
SLEEVE,SHOT PIN,PH-100 30151951
FLANGE BUSHING,SHOT PIN,PH-100 30151961
SEAL,ROD,1.5BORE 110056
SEAL,PISTON (same as 110061) 110061-326
SHOT PIN,PH-100 30173958
O-RING 51300-226-B
RING, RETAINING - INTERNAL 53500-225
BLADDER,RESERVOIR TDS9S 5 gallon 110191-501
GASKET,COVER 110132
O-RING 51300-038-B
BREATHER,RESERVOIR 71613
SEALS,ACCUM,6" W/LOW TEMP NITRILE 30124575-2
SEALS,ACCUM,2" W/LOW TEMP NITRILE 30124576-2
SEAL KIT FLR 4" ID ACCUMULATOR W/LT NITR 87605-2
LINER,STEM,UPPER 98290
SEAL,POLYPAK,3.875,STD.BORE,TDS 98291+30
O-RING 51300-277-B
(MT)OIL SEAL(veton),STD.BORE,TDS 91250-1
ISOLATOR,UPPER BEARING 30173521
SHIELD, BEARING,SMALL BORE, TDS 4S 30154362
(MT)TDS9S SHIM,BRG RETAIN.002 109586-1
(MT)TDS9S SHIM,BRG RETAIN.003 109586-2
(MT)TDS9S SHIM,BRG RETAIN.005 109586-3
(MT)TDS9S SHIM,BRG RETAIN.010 109586-4
(MT)TDS9S SHIM,BRG RETAIN.031 109586-5
(MT)BEARING,ROLLER,SPHERICAL,80X170 117987
(MT)BEARING,ROLLER,CYLINDRICAL,75X160MM 109522
(MT)BEARING,ROLLER,TAPER,200X310MM 109519
(MT)BEARING,THRUST,21.5OD 30120556
(MT)BEARING,ROLLER,CYLINDRICAL,200X360MM 109521
GEAR,BULL,HELICAL 30158574
GEAR,COMPOUND,HELICAL 30158573
SLEEVE, MAINSHAFT, TDS11 110040-1
(MT)SLEEVE,FLANGED,7.87ID,300SS 109591
(MT)SLEEVE,STEM,STD.BORE,TDS 91829-1
O-RING 51300-387-F
(MT)O-RING,.275x50.5 110008
O-RING 51300-277-B
O-RING 51300-385-F
(MT)NOZZLE,SPRAY,.86GPM 88990-9
(MT)NOZZLE,SPRAY,1.3GPM 88990-10
(MT)TUBE,BEARING,LUBE,A36 109566
(MT)PUMP,LUBE,GEARBOX,ASSY,TDS9S 117603-1
SCREW, CAP-HEX HD DRILLED 50016-28-C5D
SCREW, CAP-HEX HD DRILLED 50012-20-C5D
WASHER, LOCK-REGULAR (ALT P/N: 025062) 50912-C
WASHER, LOCK-REGULAR 50916-C
O-RING 51300-223-F
O-RING 51300-279-B
PIN,DOWEL 51216-24
GEAR,HELICAL,PINION 117939

TDS Top Drive Spare Parts Liner Stabilizer High-Grade Materials OEM Specifications for Varco TDS-11SA 30158690 0TDS Top Drive Spare Parts Liner Stabilizer High-Grade Materials OEM Specifications for Varco TDS-11SA 30158690 1

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.


4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service


5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
