Description
| Product Name: |
Top Drive System |
Motor: |
DC Motor |
| Drill Hole Diameter: |
100-150mm |
Drill Hole Depth: |
>300m |
| Rotary Speed: |
0 - 220rpm |
Drilling Depth: |
7,000m(23,000FT) |
| Rated Load Capacities: |
4,500kn(500t) |
HS Code: |
8431431000 |
| Max. Torque Of Break Out: |
80kn.M |
Tilt Angle Of Tilt Arm ( Max): |
Forth 30" Back 55" |

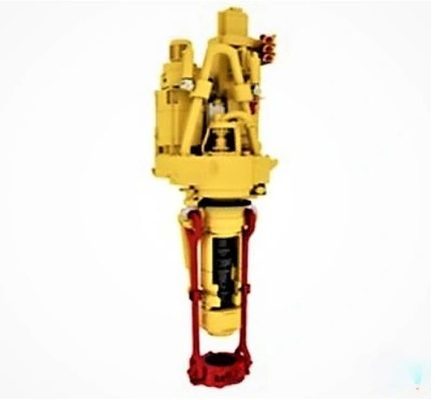

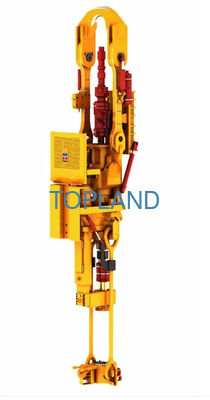

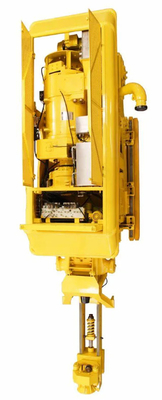

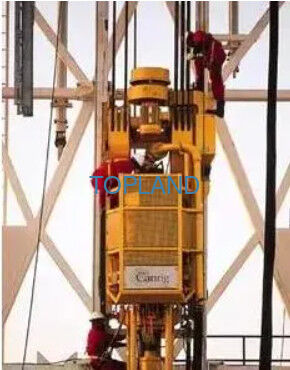

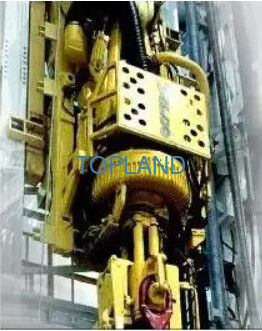

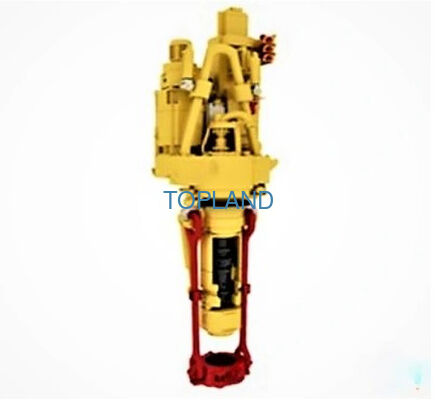

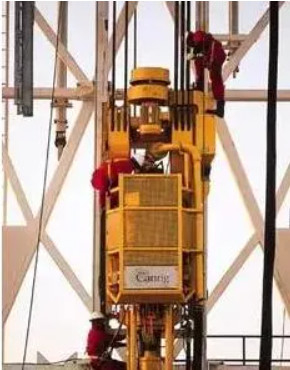

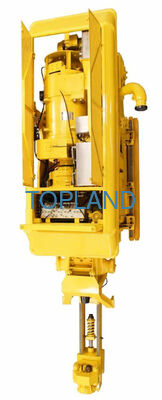

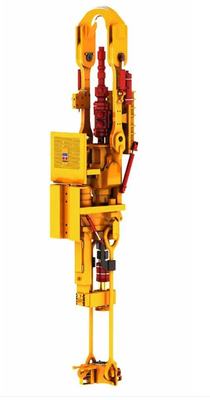

BJ 500 Ton Top Drive System – Drilling Rig Spare Parts
The Top Drive System (TDS) is recognized as one of the most important innovations in drilling technology, serving as an efficient replacement for traditional Kelly drive and rotary table operations.
By enabling drilling with triple stands rather than single joints, the TDS greatly reduces the number of make-up and break-out cycles required during drilling. This advanced design can cut connection-related operations by up to two-thirds, helping to improve drilling efficiency, increase penetration rates, and optimize overall rig performance.
| Specification |
250Ton |
350Ton |
500Ton |
| Tilt angle of tilt arm ( max) |
Forth 30" Back 55" |
Forth 30" Back 55" |
Forth 30" Back 55" |
| Maximum torque of break out |
50KN.m |
65KN.m |
80KN.m |
| Working pressure of hydraulic system |
16MPa |
16MPa |
16MPa |
| Input voltage of driving cabinet |
600VAC |
600VAC |
600VAC |
| Range of variable frequency |
Rated 0 - 121Hz |
Rated 0 - 121Hz |
Rated 0 - 121Hz |
| Shift gears range of motor |
0 - 2,400rpm |
0 - 2,400rpm |
0 - 2,400rpm |
| Drill pipe range |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
| Alarm Temperature of motor |
|
220degree |
220degree |
| Alarm Temperature of gear oil |
|
75degree |
75degree |
| Alarm Temperature of hydraulic oil |
|
75degree |
75degree |
| Transmission ratio |
|
12.8:1 |
10.4:1 |
| Shift gears range of motor |
0 - 2,400rpm |
0 - 2,400rpm |
0 - 2,400rpm |
| Drill pipe range |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
| Alarm Temperature of motor |
|
220degree |
220degree |
| Alarm Temperature of gear oil |
|
75degree |
75degree |
| Alarm Temperature of hydraulic oil |
|
75degree |
75degree |
| Transmission ratio |
|
12.8:1 |
10.4:1 |
| Nominal drilling depth (5 1/2" drill pipe) |
4,000m(13,000ft) |
5,000m(16,000ft) |
7,000m(23,000ft) |
| Rated load capacities |
2,250KN(250t)) |
3,150KN(350t) |
4,500KN(500t) |
| Drilling torque (continuous, max.) |
32KN.m |
36KN.m |
54KN.m |
| Rotary speed |
0 - 180rpm |
0 - 180rpm |
0 - 220rpm |
| Rated power of AC induction motor |
315 KW x 1 |
350KW x 1 |
350KW x 2 |
