Home > Products> Mission Pump Spare Parts> Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h

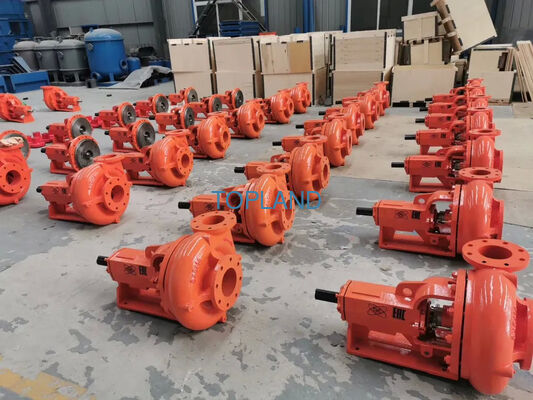

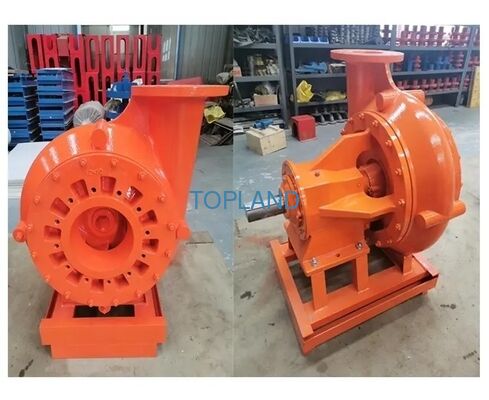

Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h

Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h
Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h Mission 3x2x13 / 10x8x14 Centrifugal Slurry Pump Series High Chrome Wear Resistant Split Case 120-1200 m3/h
Basic Information
Place of Origin: Shandong, China
Brand Name: Mission
Certification: ISO 9001:2015
Model Number: 3x2x13
Minimum Order Quantity: 1 Piece
Price: USD 500-2000 / Piece

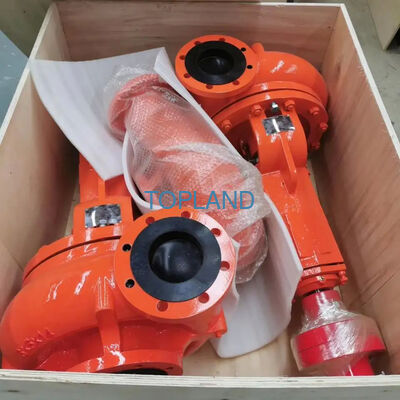

Packaging Details: Export standard plywood case with moisture-proof film, reinforced for ocean freight
Delivery Time: 3-7 working days for stock, 15-30 days for production
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 Pieces per Month
Get Best Price Contact Now
Detail Information
Pump Type: Centrifugal Split Case Pump Material: High Chrome Wear-Resistant Ductile Iron
Working Pressure: High Pressure Impeller Stage: Single Stage
Impeller Structure: Closed Impeller Suction Type: Single Suction
Pump Shaft Position: Horizontal Performance: Wear-Resistant
Flow Rate: 120-200 M³/h Suction Diameter: 6 Inch
Discharge Diameter: 5 Inch Availability: In Stock
Highlight:

High Chrome Wear Resistant Material

,

Split Case Closed Impeller Design

,

Full Series 120-1200 m3/h Flow

Product Description

Mission Centrifugal Slurry Pump Series

The Mission centrifugal pump series is engineered for demanding industrial slurry and abrasive fluid handling applications. All models feature high chrome wear-resistant ductile iron construction with single-stage closed impeller design, horizontal split case configuration, and single suction. These pumps deliver exceptional durability and reliable performance in mining, mineral processing, and heavy industrial environments.

Model Specifications Comparison

Model Suction Dia. Discharge Dia. Flow Rate Material Impeller Type Working Pressure Availability
3x2x13 3 inch 2 inch 120-200 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
4x3x13 4 inch 3 inch 150-250 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
5x4x14 5 inch 4 inch 200-350 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
6x5x11 6 inch 5 inch 250-400 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
6x5x14 6 inch 5 inch 300-500 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
8x6x11 8 inch 6 inch 400-700 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
8x6x14 8 inch 6 inch 500-800 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock
10x8x14 10 inch 8 inch 700-1200 m³/h High Chrome Ductile Iron Closed, Single Stage High Pressure In Stock

Key Features

  • High Chrome Wear-Resistant Material: Superior abrasion resistance for extended service life in slurry and mining applications
  • Split Case Design: Easy inspection and maintenance without removing piping connections
  • Single Stage Closed Impeller: Optimized hydraulic efficiency across the full flow range
  • Horizontal Shaft Configuration: Stable operation with compact footprint for easy installation
  • High Pressure Capability: Engineered for demanding industrial pumping requirements
  • Wide Flow Range: 8 models covering 120 to 1200 m³/h to meet diverse application needs

Applications

Ideal for mining slurry transport, mineral processing, coal washing, dredging, chemical processing, power plant ash handling, and other industrial applications requiring reliable high-volume abrasive fluid handling with excellent wear resistance.

Contact us today for competitive pricing, technical consultation, and fast delivery on the full Mission centrifugal pump series.
