Detail Information

Type:	IBOP	Part Number:	114706-500/502,110103-500/502
Weight (KG):	120 Kg	Pressure:	5000psi,10000,15000psi
Advantage:	High Performance
Highlight:	Varco LOWER IBOP Repair Kit , Varco Top Drive IBOP Repair Kit , API Varco Top Drive Parts

Product Description

API Varco Top Drive Parts LOWER IBOP Repair Kit Float And Kelly Valve For Drilling Rig

Product Specifications

Attribute	Value
Type	IBOP
Part Number	114706-500/502,110103-500/502
Weight	120 Kg
Pressure	5000psi, 10000psi, 15000psi
Advantage	High Performance

Product Description

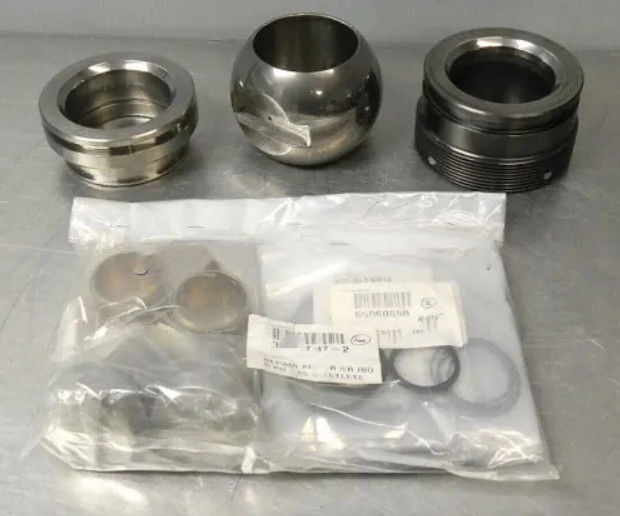

The Varco Top Drive Spare Parts LOWER IBOP Repair Kit is a comprehensive maintenance solution for the Lower IBOP component of top drive systems. This complete kit includes all necessary replacement parts such as seals, o-rings, and valves to ensure efficient repairs and minimize operational downtime.

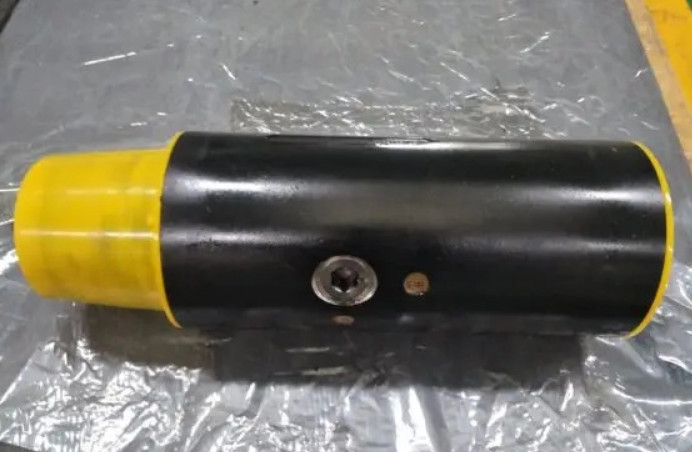

The included Kelly Valve is a critical component for controlling drilling fluid flow between the drill string and wellbore. Engineered for durability, it withstands extreme pressures and harsh drilling conditions while maintaining reliable performance. Manufactured from premium materials, this valve offers easy installation and maintenance for Varco top drive systems.

Technical Parameters

Type	O.D.	I.D.	Connection (API)	OAL
DXS187 Upper IBOP	187	77.8	6-5/8REG	572(22-1/2)
DSS187 Lower IBOP	7-23/64	3-1/16	-	523(20-19/32)
DSS197 Upper IBOP	197	77.8	6-5/8REG	572(22-1/2)
DXS197 Lower IBOP	7-3/4	3-1/16	-	523(20-19/32)
DSS216 Upper IBOP	216	77.8	6-5/8REG	600(25-5/8)
DXS216 Lower IBOP	8-1/2	3-1/16	-	512(20-5/32)
DSS254 Upper IBOP	254	102	8-5/8REG	800(31-1/2)

Contact Information

For additional information or inquiries, please contact:

Email: anna.cai@toplandoil.com

Sales: sales@toplandoil.com

Tag:

Place of Origin:	China
Brand Name:	TOPLAND
Certification:	API
Model Number:	Topand

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	wooden box
Delivery Time:	15 days
Payment Terms:	T/T,Western Union
Supply Ability:	15 days
