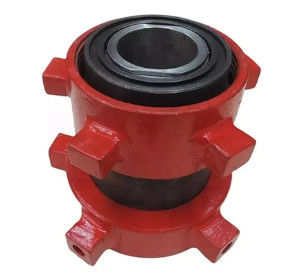

Name: Varco API Swivel Wash Pipe Packing Assembly for Oilfield Drilling Rigs
Brand: Topland Oilfield Supplies Ltd.
SKU: SL450
Price: 25,050.00 USD
Availability: InStock

Detail Information

Model:	SL135, SL170, SL225, SL450	Processing Type:	Casting
Type:	Varco Top Drive Spare Parts, Integal Swivel Assembly Wash	Power Source:	Hydraulic Or Electric
Size:	Customizable	Material:	High-strength Steel
Weight:	Varies Depending On Model	Function:	Rotary Drilling
Compatibility:	Suitable For Various Drilling Rigs	Certifications:	API And ISO Certified
Highlight:	Varco Oilfield Drilling Rig Spare Parts , Varco Swivels Wash Pipe Packing Assembly

Product Description

Varco API Swivels Wash Pipe Packing Assembly for Oilfield Drilling Rigs

Product Specifications

Attribute	Value
Model	SL135, SL170, SL225, SL450
Processing Type	Casting
Type	Varco Top Drive Spare Parts, Integal Swivel Assembly Wash
Power Source	Hydraulic or electric
Size	Customizable
Material	High-strength steel
Weight	Varies depending on model
Function	Rotary drilling
Compatibility	Suitable for various drilling rigs
Certifications	API and ISO certified

Product Description

The Varco API Swivels Wash Pipe Packing Assembly is an essential component for oilfield drilling rigs, designed for hanging drill pipes and jointing hoses in well repair operations. Available in models SL35, SL60, SL90, SL135, SL225, and SL450, these swivels are manufactured to API Spec 8A/8C standards for drilling and production hoisting equipment.

Key Features

Essential hoisting tool for drill pipe suspension and hose jointing
Manufactured to API Spec 8A/8C standards
Available in multiple models to suit various load requirements
High-strength steel construction for durability
Compatible with various drilling rig configurations
API and ISO certified for quality assurance

Technical Specifications

Model	SL135	SL225	SL450
Max. static load kN(lbs)	1350	2250	4500
Max. Rotary speed (r/min)	300	300	300
Max. working pressure(Mpa)	35	35	35
Hook Clearance (mm)	495	540	549
Center Pipe Diameter (mm)	64	75	75
Bore of stem mm(in)	752 15/16	752 15/16	752 15/16
Connection Screw Thread	Connect to Center Pipe API REG 4 1/2,LH	REG 6 5/8,LH	REG 6 5/8,LH
Connect to Kelly API	REG 6 5/8,LH	REG 6 5/8,LH	REG 6 5/8,LH
Model of air motor	FMS-20	FMS-20	FMS-20
Rated speed r/min	2800	2800	2800
Power kW	14.7	14.7	14.7
Rated pressure MPa	0.6	0.6	0.6
Air consume volume m3/min	17free air	17free air	17free air
Rated spinning speed r/min	92	92	92
Max. spinning torque N*m	3000	3000	3000
Overall dimension mm(in)	Length: 2505 Width: 758 Height: 840	Length: 2880 Width: 1046 Height: 1065
Masskg(kg)	1341	2570	3060

Tag:

Place of Origin:	China
Brand Name:	TOPLAND
Certification:	API
Model Number:	SL450

Minimum Order Quantity:	2
Price:	negotiable
Packaging Details:	wooden box
Delivery Time:	3-5 Days
Payment Terms:	T/T,Western Union
Supply Ability:	70 per day
